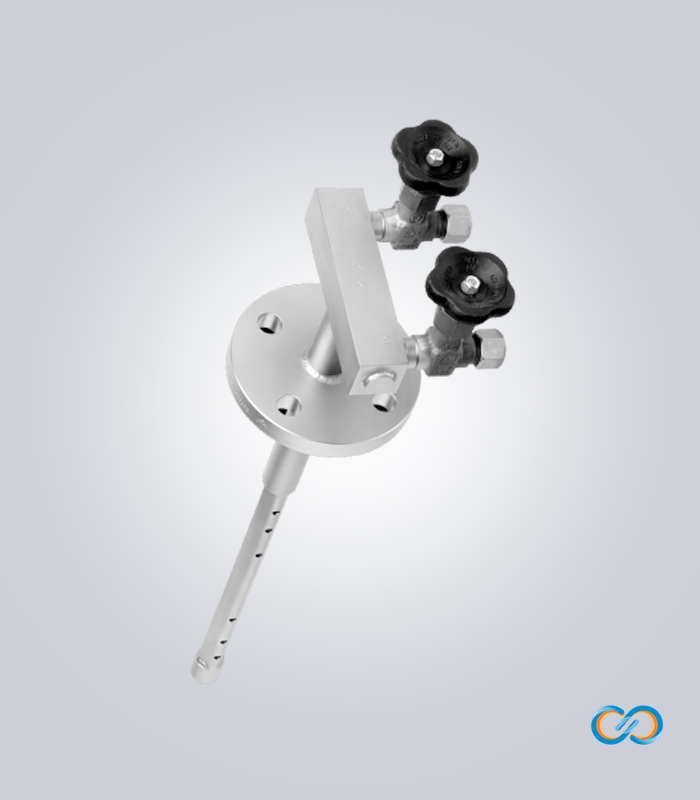

| Measurement Principle | Differential pressure measurement using an averaging pitot tube |
|---|
| Key Materials | Pitot tube made of SS304, SS316; transmitter housing in aluminum or stainless steel |
|---|
| Accuracy | System accuracy up to ±1.0% of flow rate |
|---|
| Flow Range | Suitable for velocities from 1 m/s to 70 m/s, adaptable for liquids, gases, or steam |
|---|
| Size Range | DN 50 to DN 2000 (2” to 80”) |
|---|
| Flow Medium | Suitable for liquids, gases, and steam |
|---|
| Operating Pressure | Up to 100 bar |
|---|
| Temperature Range | -40°C to 400°C |
|---|
| Output Signal | 4-20mA with HART protocol |
|---|
| Installation | Single-point insertion design for streamlined setup and minimal disruption. |
|---|
| Applications | Used in process industries for energy-efficient, accurate flow measurement |
|---|
